Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine

  • Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine
  • Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine
  • Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine
  • Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine
Miejsce pochodzenia Chiny
Nazwa handlowa DIXUN
Orzecznictwo CE & ISO 9001:2015
Numer modelu DX-2500A
Minimalne zamówienie jeden zestaw
Szczegóły pakowania Części zamienne i szafa sterownicza zostaną załadowane w drewnianej skrzyni. Główną maszyną jest pak
Czas dostawy 30 dni roboczych
Możliwość Supply 5 zestawów miesięcznie
Szczegóły Produktu
Średnica drutu 3-6 mm Orzecznictwo CE,ISO9001
Kolor można dostosować Woltaż 220 V/380 V/415 V/440 V.
Prędkość spawania 40-60 razy/minutę Nazwa Siatka z siatki przewodowej
typ w pełni automatyczny Stan Nowy
Usage welding wire mesh fence,Security reinforcing concrete wire mesh welding machine made in China Wysokość ogrodzenia 1000-2500 mm
Ogrodzenie zgięte Automatyczne gięcie Ciągnięcie silnika z siatki Silnik serwo
Podkreślić

160kva pneumatic welding mesh machine

,

50x200mm wire mesh welding machine

,

transformer wire mesh welder
Zostaw wiadomość
opis produktu

Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine





Introduction of Wire Mesh Welding Machine



1. The control system adopts synchronous CNC technology, PLC program and HMI. It is easy and convenient to operate with the touching screen.



2. The cross wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop cross wires automatically. The store cross device has more capacity can load max 1 tons wires.



3. Adjustable distance of vertical wire that allows different hole size between the vertical wire, when input the distance of cross wire to touch screen, any mesh size can be made. Welding mesh size can be adjustable randomly within range.

4. Pulling mesh system is controlled by servo motor. The servo motor adopt Delta brand,high precision and big power.



5. The up and down of pulling hook is controlled by air cylinder. And the mesh pulling distance (cross wire space) is adjusted by PLC on touch screen.



6. Cast water-cooling welding transformer:160KVA*9PCS (51 welding electrodes) ——every 6 welding electrodes need one welding transformer.And the welding transformer is water cooling. Which has a longer service life.



7. Wire feeding way: The vertical wires pre-straighten pre-cut. The horizontal wires pre-straightened and pre- cut.



8. The bending machine will bend the mesh panel automatically after the pulling mesh car push the mesh panel under the bending machine. The bending machine can bend the mesh panel in the beginning, in the middle and at the end. The bending machine is controlled by the control cabinet. Finally. The robot mesh stacking device adopts intelligent robot stack.which grab the 3d fence onto the collect mesh car. Its advantage is that it can accurately and quickly place the mesh in order, reduce labor and save cost.



9. The power transformer must be at least 160KVA to supply machine running and the distance between the power transformer and the machine within 100 m.



10. Material:Suitable for low carbon wire,galvanized wire.



Features of Wire Mesh Welding Machine



1. The length of fence can be adjusted arbitrarily 1000-3000 mm.
2. The longitudinal wire and the transverse wire are precise positioning, mesh panel is flat ,mesh hole is standard.
3. The transverse wire spacing adjusted through the touch screen, different mesh sizes can set in the same mesh.
4. The upper and lower dies of the bending machine move at the same time to save time.
5. We can easily adjust the welding current when we need to weld different wire diameters.
6. We can set the output and stop the machine automatically after the mesh production finished.
7. Wire feeding,mesh welding, mesh bending, mesh stacking running together.High production efficiency.
8. The robot mesh stacking device can accurately and quickly stack the 3d fence mesh neatly, facilitate packaging and reduce labor cost. It can intelligently adjust the height of mesh stacking.



Technical Parameters of Wire Mesh Welding Machine



Model DX-2500A Wire diameter 3.0--6.0mm
Longitudinal wire distance

50--250mm

(adjustable)

 Vertical wire form Pre-cut wire vertical wire feeding hopper automatic
Transverse wire distance

50-250mm

(adjustable)

 Cross wire form Pre-cut wire feeding by stepping motor automatic
Width of mesh panel Max. 2500mm Rated voltage (customized)
Welding speed 55--65 times/min Welding transformer 160KVAX9 PCS
Welding electrodes 51 PCS Length of mesh panel 1000--3000mm
Machine weight 14.8 T Machine dimension 25 x 3.8 x 2.2m (L*W*H)
Production Capacity 55-60 panels per hour Method of pull mesh By servo motor
Manpower 1--2 person Required floor space 26 x 5m x 7m (L*W*H)
Power transformer 200KVA Electrical brake 630A
Cable

240mm2*3pcs

(Aluminium cable)

 Distance from power transformer to machine 100m

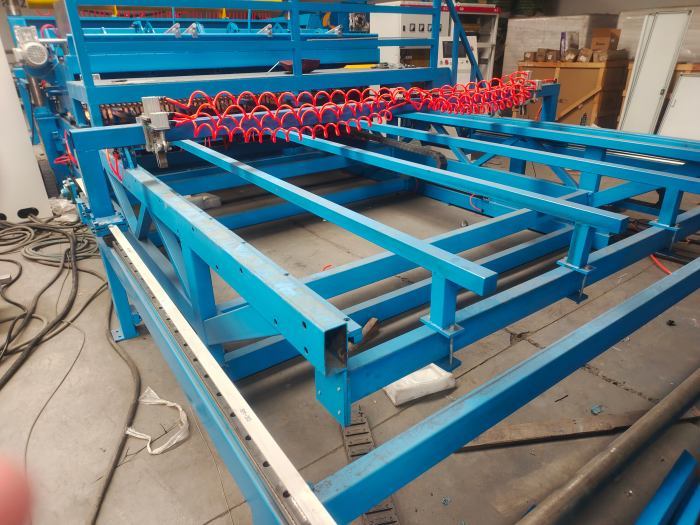

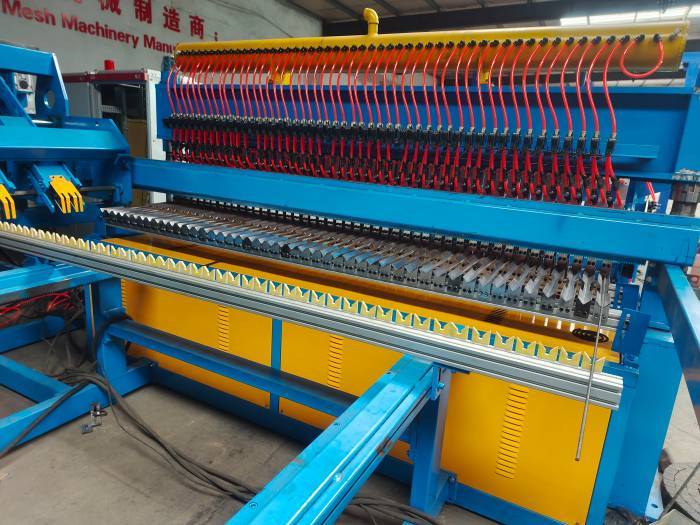

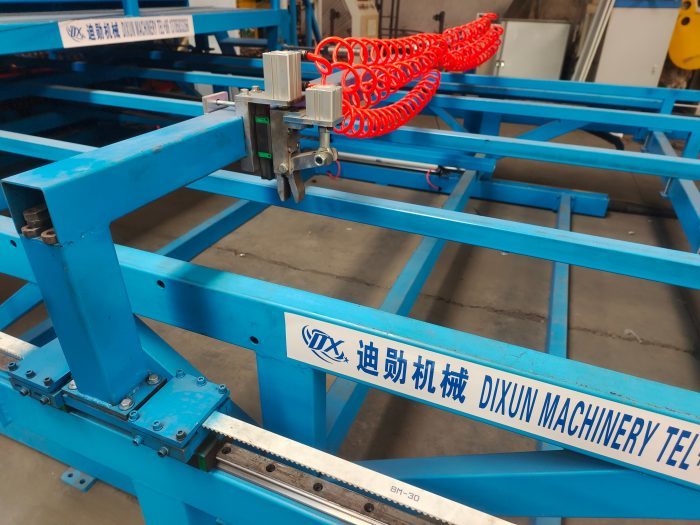

Photos of Wire Mesh Welding Machine



Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine 0

Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine 1

Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine 2

Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine 3

Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine 4
