Fence Length 2.5m Transformer capacity160kva Curved Fence Mesh Welding Machine

Fence Length 2.5m Transformer capacity160kva Curved Fence Mesh Welding Machine


Introduction of Fence Mesh Welding Machine:

This fence mesh welding machine is developed and produced by the Chinese technical team and European engineers combined with the use experience of customers. The whole production line is very advanced and each system has been greatly improved.
The line wire feeding system is very precise, and the length range can be 75-2500 mm, the pull mesh system, mesh conveying system and mesh bending system are controlled by different servo motors, it can greatly improve the production speed.

 Features of Fence Mesh Welding Machine:
1. The mesh length (fence height) can be adjusted arbitrarily 1000-2500 mm.
2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The line wire and the cross wire are precise positioning, mesh panel is flat ,mesh hole is standard.
4. Cross wire spacing adjusted through the touch screen, different mesh sizes can set in the same mesh.
5. The upper and lower dies of the bending machine move at the same time to save time.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. We can set the output and stop the machine automatically after the mesh production finished.
8. Wire feeding,mesh welding, mesh bending, mesh stacking running together.High production efficiency.
9. Robot mesh stacking system can accurately and quickly place the mesh, saving labor cost.

Details of Fence Mesh Welding Machine:

1. The longitudinal wire feeding system is a new design, which can place longitudinal wires quickly and accurately, automatic alarm in case of failure. The longitudinal wire with pre-loading hopper. Which can load 1500kg wires.

2. This longitudinal wire push device is specially designed to make the longitudinal wire accurately reach the specified position and ensure that the grid standard has no error.

3. The connection between the welding transformer and electrodes uses copper block instead of soft copper leaf, which has better quality and conductive effect.

4. The electrode and copper base are all made of high chromium copper (CuCrZr), which is a special alloy material with wear resistance and high temperature resistance. Increase the service life of the electrode.

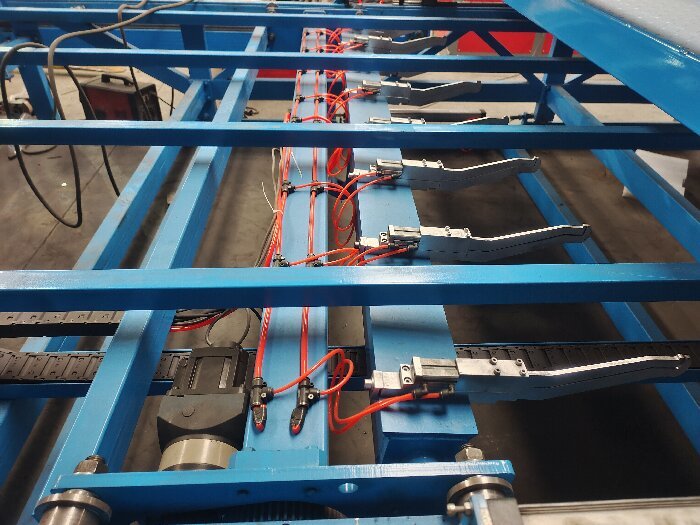

5. The mesh pulling repeatedly is to pull the welded cross wire out of the grid according to the parameters set by the program, and according to the length of the mesh, it can realize mesh pulling repeatedly, so that the entire mesh is completely pulled out.


6. This push mesh device is used to push the mesh panel under the bending machine.

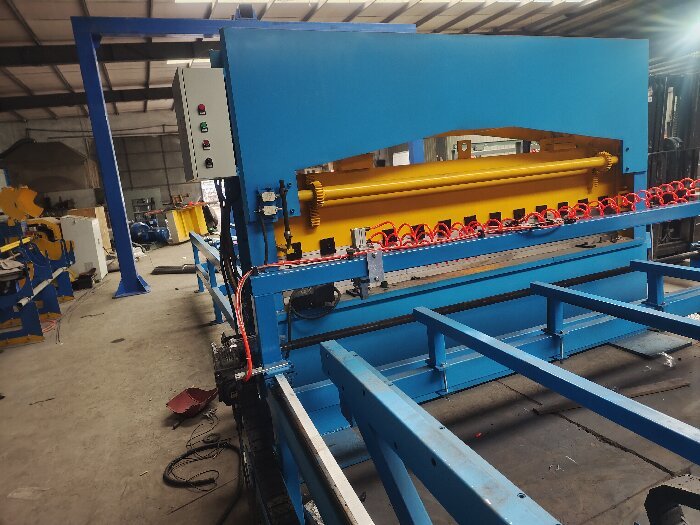

7. This bending machine can online bending mesh panel automatic,save labor and provide high efficiency.

8. The pulling mesh device pull out the 3D fence panel after bending.

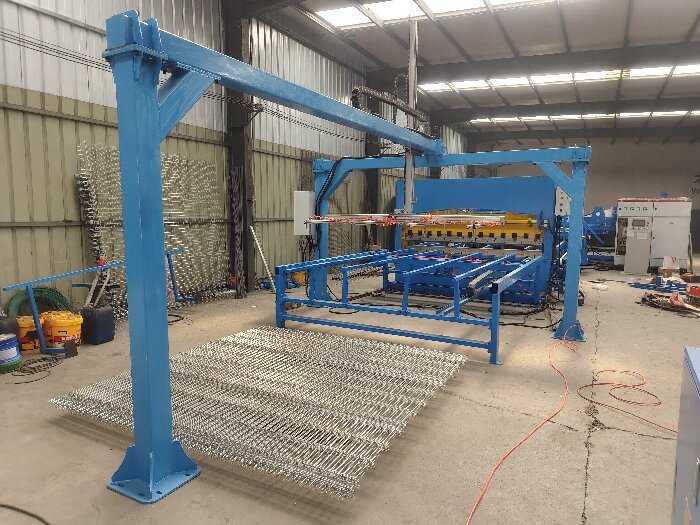

9. The robot mesh stacking device can accurately stack the 3d fence mesh neatly, facilitate packaging and reduce labor cost. It can intelligently adjust the height of mesh stacking.

10. The stepper motor drives the disk-type device to drop transverse wires automatically. The store transverse wire device has more capacity can load max 1.5 tons wires. The cross wire hopper is a feeding device that send straightens and cuts the fixed-length steel bars into the welding electrode position of the main welding machine according to the welding needs. The biggest feature of this hopper is that it is equipped with a cross wire storage silo and an automatic feeding device. The storage capacity is about 1.5 tons, which reduces manual feeding and secondary materials and improves production efficiency.

11. This hopper is composed of platform ladder, storage bin, and falling hopper, which is installed on the circulating mesh pulling frame. There are ladders on both sides of the hopper platform for easy operation.

12. The fence mesh welding machine is equipped with independent main control cabinet and operation console. Use PLC programmable control system, touch screen operation interface. Easy operation.

Technical Parameters of Fence Mesh Welding Machine:



Applications of Fence Mesh Welding Machine:

The fence mesh is widely used in factories, residential communities, railway guardrails, airport guardrails, parking lot guardrails, road guardrails, and so on - they can be seen almost everywhere nowadays.

Photos of Fence Mesh Welding Machine:
